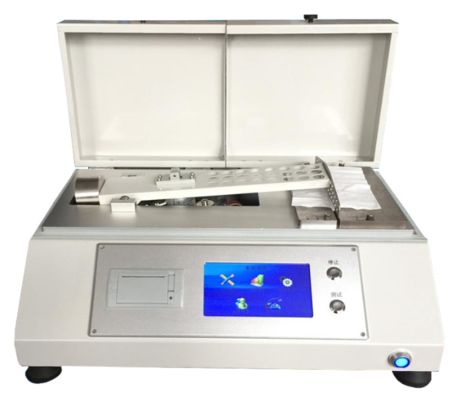

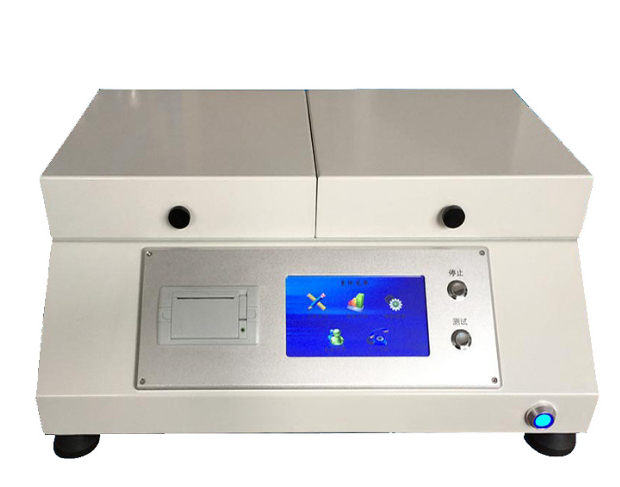

TAPPI T498 Tissue Softness Test Machine

TAPPI T498 Tissue Softness Test Machine

  • TAPPI T498 Tissue Softness Test Machine
  • TAPPI T498 Tissue Softness Test Machine
  • TAPPI T498 Tissue Softness Test Machine
TAPPI T498 Tissue Softness Test Machine
รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: SKYLIE
ได้รับการรับรอง: CE, Calibration Certificate, Rosh, CO...
หมายเลขรุ่น: SL-P22
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1
รายละเอียดการบรรจุ: แพ็คเกจไม้อัดส่งออก
เวลาการส่งมอบ: 15 วันทำการ
เงื่อนไขการชำระเงิน: L/C, D/P, D/A, T/T, Western Union, MoneyGram
สามารถในการผลิต: 20-30 /เดือน
ติดต่อ
รายละเอียดสินค้า
ช่วงการวัด: (10 ~ 1,000) นิวตัน ทดสอบความเร็ว: 1.2 มม./วินาที
เวลาในการวัด: 15 วินาที ปณิธาน: 1ล้านนิวตัน
ความแม่นยำ: ± 1% ความลึกของการเจาะโพรบ: 8 +0.5 มิลลิเมตร
ตัวอย่างแพลตฟอร์มที่มีความกว้างแคบ: 5 มม., 6.35 มม., 10 มม., 20 มม ข้อผิดพลาดด้านขนานทั้งสองด้านของช่องตารางตัวอย่าง: ≤0.05มม.
พาวเวอร์ซัพพลาย: ไฟฟ้ากระแสสลับ 220V ± 22V, 50Hz
เน้น:

TAPPI T498 tissue softness tester

,

lab tissue softness testing machine

,

TAPPI tissue softness test equipment

TAPPI T498 Tissue Softness Test Machine
Tissue Softness Tester
TAPPI T498 Tissue Softness Test Machine 0 TAPPI T498 Tissue Softness Test Machine 1
Product Overview
The tissue softness tester is a test instrument that simulates the softness of the hand. It is designed according to the relevant provisions of national standard GB8942 "Determination of paper softness". It is mainly used for the softness measurement of sheet-like soft software materials such as medium and high grade toilet paper, tobacco sheets and fabrics.
The instrument test system uses digital control technology controlled by microcomputer, featuring a humanized touch screen display with Chinese and English bilingual operating system. It realizes man-machine dialogue function with advantages of advanced technology, complete functions, reliable performance and easy operation. It is an ideal experimental equipment for papermaking, scientific research and quality inspection industries.
Test Principle
Under the specified conditions, when the sample is pressed into a certain depth (about 8mm) by the plate probe of the softness meter, the sum of the maximum vector of the anti-bending force of the sample itself and the friction force between the sample and the gap is called softness, which is expressed in millinewtons. The smaller the softness value, the softer the sample is.
Test Standards
GB/T 8942, QB/T 1060, ASTM D2923, ASTM D6828-02, TAPPI T498, INDA IST 90.3, EDANA WSP 90.3
Technical Parameters
Parameter Specification
Measuring range (10 ~ 1000) mN
Test speed 1.2mm/s
Measurement time 15s
Resolution 1mN
Accuracy ±1%
Probe penetration depth 8 +0.5mm
Sample platform narrow width 5mm, 6.35mm, 10mm, 20mm
Parallelism error on both sides of the sample table slit ≤0.05mm
Display Chinese and English 5-inch touch screen with curve display, touch screen life: about 50,000 hours
Power supply AC 220V ± 22V, 50Hz
Transport packaging Outer box (wooden box), inside the box (buffer material)
Machine Video Demonstration
View on YouTube
