ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement

ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement

  • ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement
  • ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement
  • ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement
  • ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement
ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement
รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: SKYLINE
ได้รับการรับรอง: CE
หมายเลขรุ่น: SL-F001
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1
ราคา: negoitable
รายละเอียดการบรรจุ: เคสไม้อัด
เวลาการส่งมอบ: 15 วันทำการ
เงื่อนไขการชำระเงิน: t/t
สามารถในการผลิต: 1 หน่วย/เดือน
ติดต่อ
รายละเอียดสินค้า
ลดความสูง: 460 มม. หรือ 500 มม ขนาดตัวอย่างมาตรฐาน: 100 มม. (ยาว) × 100 มม. (กว้าง) × 50 มม. (สูง)
แสดง: หน้าจอสัมผัส LCD ความแม่นยำ: <1.5%
เครื่องพิมพ์: ใช่
เน้น:

460mm Drop Height Spong & Foam Ball Rebound Tester

,

500mm Drop Height Sponge Elasticity Tester

,

16.8g Steel Ball Foam Rebound Rate Tester

ISO 8307 Sponge & Foam Ball Rebound Tester Machine
Sponge Elasticity & Rebound Rate Tester
Machine Introduction
This rebound tester is designed and manufactured according to ASTM D3574, ISO 8307, and GB/T6670-97 standards. It precisely measures the falling ball resilience of soft polyurethane foams by calculating the maximum rebound height of a steel ball and determining the percentage of the falling height. The rebound rate accurately represents the foam's resilience characteristics.
Key Features
  • Microprocessor-controlled operation with touch screen interface
  • Chinese language display for easy operation
  • Built-in printer for test data output
  • High measurement accuracy (<1.5%)
  • Automatic calculation of average rebound rate
  • Safe, reliable, and precise testing mechanism
Technical Parameters
Parameter Specification
Steel ball drop distance GB 460±0.5%mm or ASTM/ISO 500±0.5%mm
Steel ball diameter ¢16±0.05 mm
Steel ball weight 16.8g ± 1.5 g
Accuracy <1.5%
Display LCD Touch Screen interface
Standard sample size 100mm(L) × 100mm(W) × 50mm(H)
Printer Built-in
Main Configuration
  • Mainframe unit (including release mechanism and height adjustment mechanism)
  • Optical fiber distance measuring sensors
  • Control box with LCD touch screen
  • Steel ball and magnetic bar
Test Standards
Compliant with ASTM D3574 and ISO 8307 international testing standards.

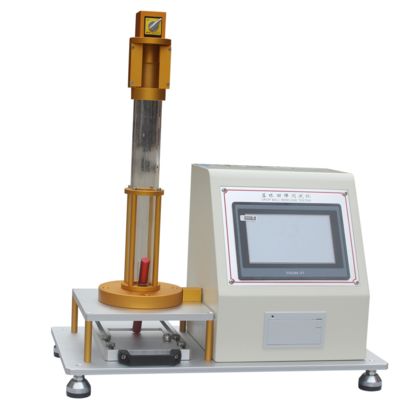

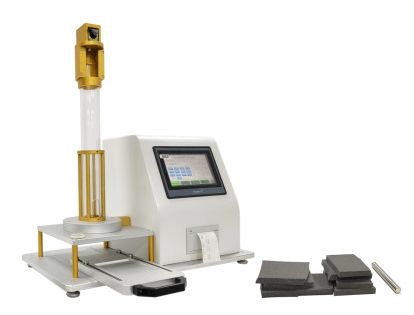

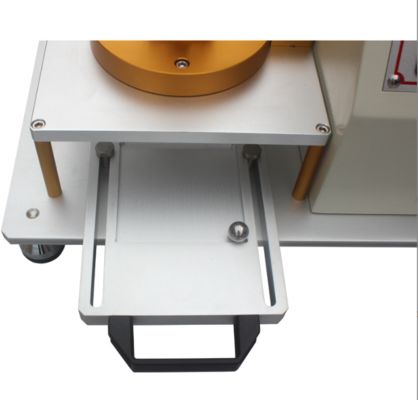

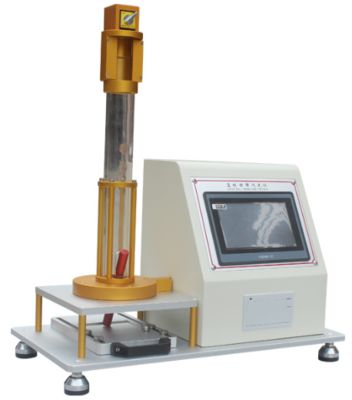

Product Images
ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement 0 ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement 1 ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement 2
